KOCKS roll rings

KOCKS Roll Rings for KOCKS three-roll mill.

Mainly the production of bearing steel spring steel, alloy steel and other special steel.

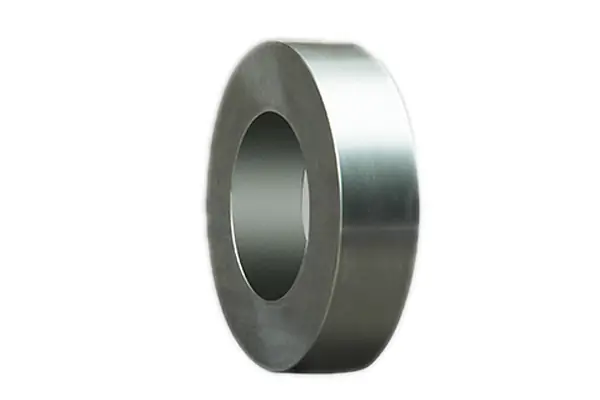

KOCKS cemented carbide roll rings

Product name: KOCKS roll rings

Product Advantage: HBW05 is a new type of material specially developed by our company for KOCKS rolling mill bar production line. Its steel passing capacity can reach 60-80% of the cemented carbide roller ring, the price is less than 50% of the alloy roller ring, and the frequency of slot changing can reach 2 shifts.

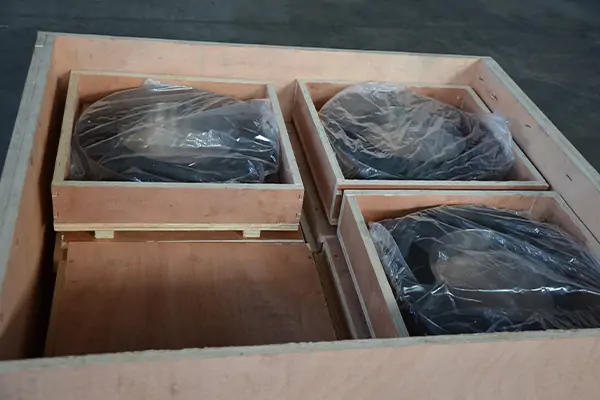

Packing Details : Wooden box with fumigation or Wooden Fram
Delivery Details: 30~60 days or Based on the quantity
Shipping: Sea freight、Land freight、Air freight
Customization:
Customized logo(Min. Order 1 piece)
Customized packaging(Min. Order 1 piece)
Graphic customization(Min. Order 1 piece)
Checking report: Material Report、Hardness Report、UT/MT Report、Dimensions checking report、Mechanical Property Test Report

Manufacture drawing
Process schedule with ETD date
QC checking of each process
Checking report
Photos &videos of each process
ISO 9001 certificate
Warranty Time
The third party Checking

KOCKS roll rings Application

KOCKS Cemented Carbide Roll Rings for KOCKS three-roll mill.

Mainly the production of bearing steel spring steel, alloy steel and other special steel.

Advantages of KOCKS roll rings:

HBW05 is a new type of material specially developed by our company for KOCKS rolling mill bar production line. The hardness of the roll surface is HSD84-89, the uniformity of the roll surface hardness: ≤3HSD, the hardness drop/mm: ≤2HSD. The hardness difference of 3 roller rings of the same hole type is less than or equal to 3HSD. Single grinding amount (reduction): ≤1 mm. The material has high wear resistance and impact toughness under thermal load, so the product has high wear resistance and impact toughness, no ring burst phenomenon, and low processing difficulty. Its steel passing capacity can reach 60-80% of the cemented carbide roller ring, the price is less than 50% of the alloy roller ring, and the frequency of slot changing can reach 2 shifts.

Production Process

Product design→ Roll blank design→ Roll blank manufacturing→ Roll blank acceptance→ Annealing→ Rough turning→ Ultrasonic flaw detection→ High temperature quenching→ Low temperature tempering→ Ultrasonic flaw detection→ Finishing→ Ultrasonic flaw detection→ Roll body grinding→ Roll numbering→ Inspection→ Cleaning → Packing → Shipping → Warehousing → Inspection → Use and Maintenance → On-site Communication → Design Improvement.

As can be seen from the flow chart, roll manufacturing forms a closed-loop system from product design, production and manufacturing, use and maintenance, and improved design, and the quality of rolls is constantly improving.

Production equipment

Testing standards

Design specifications and standards for manufacturing, quality control and inspection

The relevant standards of the roller ring are as follows:

  • Anti-rust packaging implements GB/T1504 and GB/T1503-2008 standards.
  • Sampling method of samples for chemical analysis of GB222 steel and allowable deviation of chemical composition of finished products
  • GB223 Chemical Analysis Methods of Steel and Alloy
  • GB/T13313 Roller Shore Hardness Test Method
  • GB/T1804 General Tolerances Tolerances of linear and angular dimensions without tolerances
  • GB/T1503-2008 National Standard for Cast Steel Rolls

    Testing regulations:

  1. Check the size and surface quality of each part one by one;
  2. Carry out ultrasonic flaw detection three times one by one;
  3. Carry out hardness test piece by piece;
  4. The depth of the hardened layer of the roll body is affected by the manufacturing process.

Relaed product

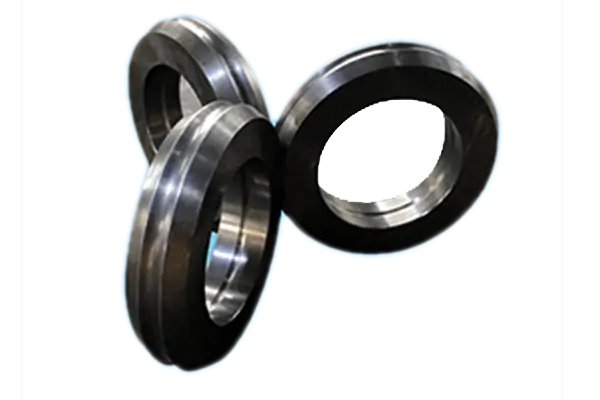

KOCKS- roller ring

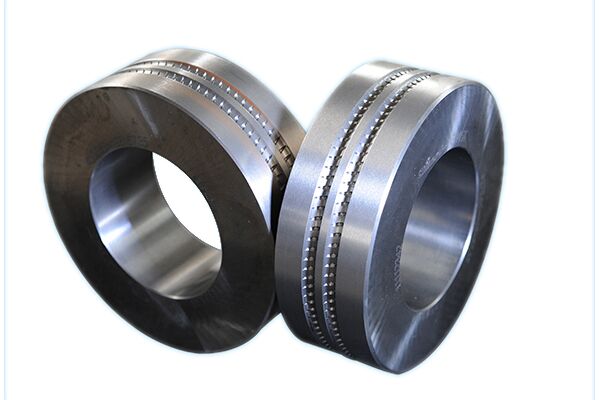

Roll rings for high speed rolling of ribbed steel bars

Composite cemented carbide roll rings

Cemented carbide composite roll

We can provide characteristic service and differentiated products according to the different conditions of rolling mill.
