Stopper supporting tundish zirconium nozzle

The products of LMM Group have been exported to more than 90 countries, countries & areas in America, Europe, Southeast Asia, the Middle East, Africa, Asia, etc, forming strong and core competitiveness in steelmaking, continuous casting, rolling areas to supply high value-added, green, intelligent and one-stop solution and service to global customers in iron, steel, metallurgical industries, etc.

Please provide design data for special processing requirements

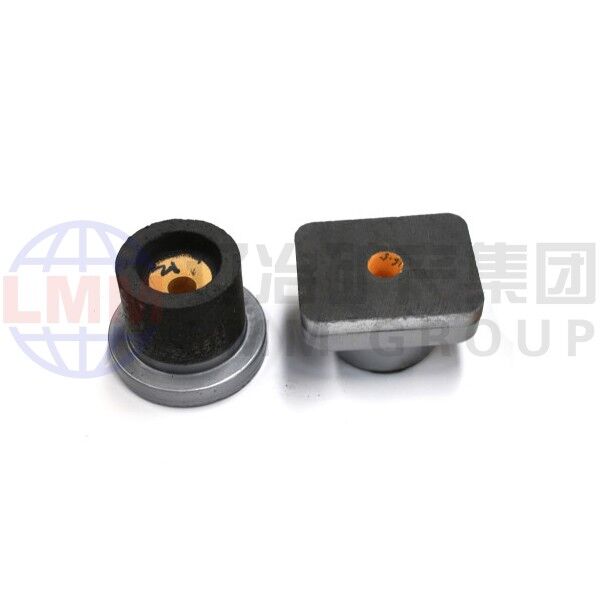

The stopper rod supporting tundish zirconium nozzle is inlaid in the seat brick at the bottom of the tundish, and cooperates with the stopper rod to control the flow of molten steel. The nozzle of LMM series tundish has the characteristics of good erosion resistance, good thermal shock stability, anti-erosion and anti-clogging. With the integral plug rod produced by our company, it can significantly increase the number of tundish continuous casting furnaces.

Main physical and chemical indicators:



  body slag line   body slag line
chemical composition(%) AI2O3; ≥ 45 65 45
MgO; ≤ 60
SiO2; ≥ 15 10 15
C+SiC; ≥ 22 10 22 20
crushing strength, MPa,≥ 20 25 20 15
bending strength, (MPa),≥ 8 8 8 5
parent porosity, (%);≤ 18 16 18 19
Bulk Density, g/cm3,≥ 2.33 2.70 2.31 2.60
Thermal Shock Resistance, (1100℃),≥ 5 5
